AC EV Chargers
Our AC EV charger CE version has a maximum rated power of 7kW/11kW/22kW, while the domestic version has a maximum rated power of 21kW, suitable for various parking locations requiring AC charging including indoor and outdoor residential garages, hotels, villas, and scenic area parking lots.
Scope of Application
Parking Lot
Villa
Garage
Hotel
Product Features
Smart Charging
Charging Cat APP: One-Tap Control
Shared Charging
Revenue Optimization via Off-Peak Utilization
One-Click Locking
Triple-Layer Anti-Theft Protection
Bluetooth Automatic Charging
Plug-and-Charge (PnC) with Zero Interaction
Scheduled Charging
Application Scenarios

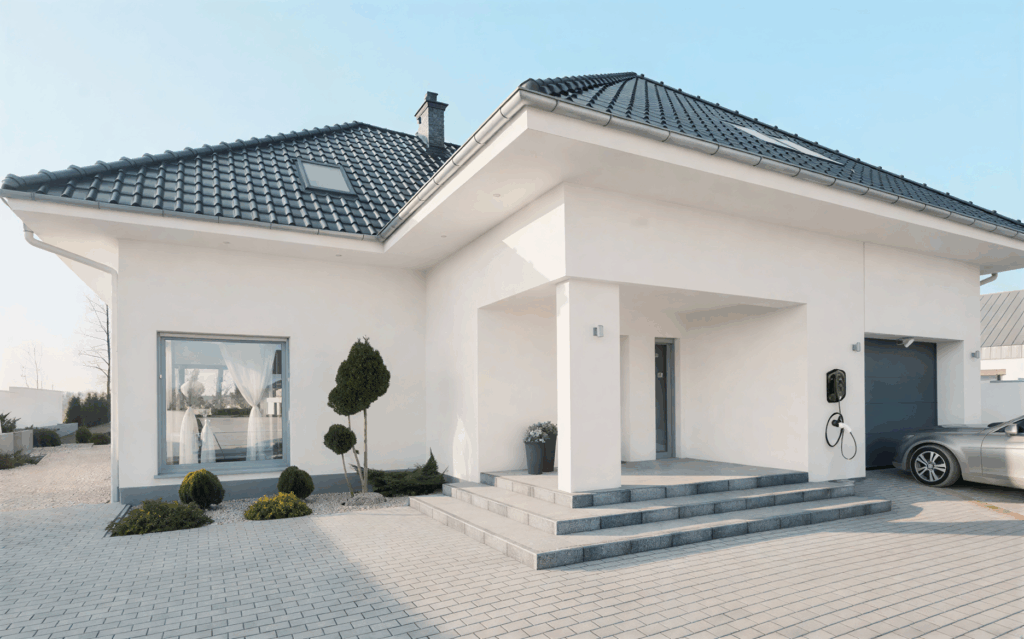

Residential Area
Hotel Parking Garage
Scenic Lodging
AC 7 kW
Output Voltage
AC 230 V ±10%
Rated Power
7 kW
Charging Modes
Plug & Charge / Card Authorization
Protection Functions
Short-circuit, surge, earth leakage, overvoltage, overcurrent,
undervoltage, overtemperature, emergency stop, rainproof
undervoltage, overtemperature, emergency stop, rainproof
Communication Protocol
OCPP 1.6
Charging Connector
Type 2
Rated Current
32 A
Residual Current Protection
Internal / External RCD Protection
Operating Temperature
−30 °C ~ +50 °C
Protection Level
IP55
Mounting Type
Wall-mounted / Pole-mounted
Certificates
CE
AC 11 kW
Output Voltage
AC 400 V ±20%
Rated Power
11 kW
Charging Modes
Plug & Charge / Card Authorization
Protection Functions
Short-circuit, surge, earth leakage, overvoltage, overcurrent,
undervoltage, overtemperature, emergency stop, rainproof
undervoltage, overtemperature, emergency stop, rainproof
Communication Protocol
OCPP 1.6
Charging Connector
Type 2
Rated Current
16 A
Residual Current Protection
Internal / External RCD Protection
Operating Temperature
−30 °C ~ +50 °C
Protection Level
IP55
Mounting Type
Wall-mounted / Pole-mounted
Certificates
CE
AC 22 kW
Output Voltage
AC 400 V ±20%
Rated Power
22 kW
Charging Modes
Plug & Charge / Card Authorization
Protection Functions
Short-circuit, surge, earth leakage, overvoltage, overcurrent,
undervoltage, overtemperature, emergency stop, rainproof
undervoltage, overtemperature, emergency stop, rainproof
Communication Protocol
OCPP 1.6
Charging Connector
Type 2
Rated Current
32 A
Residual Current Protection
Internal / External RCD Protection
Operating Temperature
−30 °C ~ +50 °C
Protection Level
IP55
Mounting Type
Wall-mounted / Pole-mounted
Certificates
CE
