0
Milyon + CH
Cumulative Shipments
≤
0
ms
Minimum Acquisition Time
≤
0
ms
Fastest Current Rise
>
0
%
Regenerative Efficiency
0
% F.S.
Ultra-High Current and Voltage Accuracy

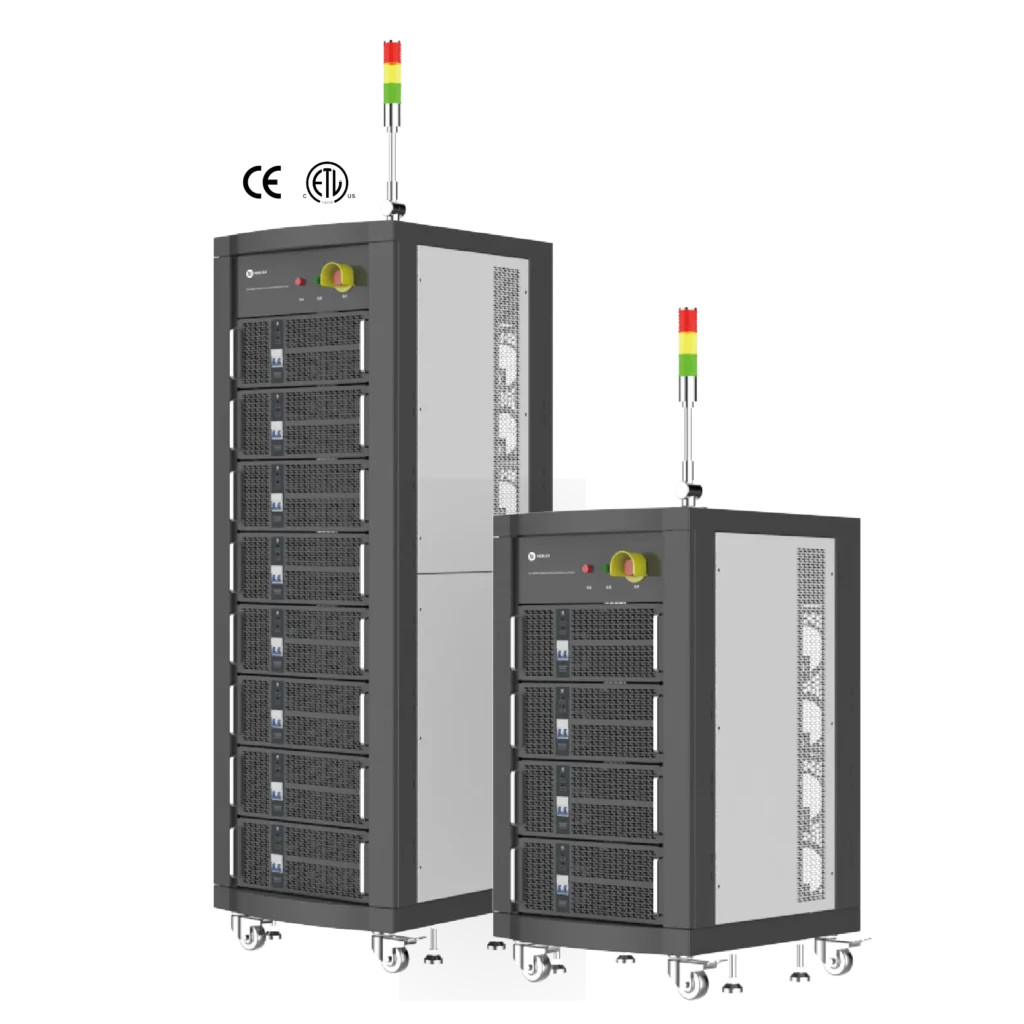

Battery Cell Cycle Test System
Model
JAT-JTFLCT-05300-E010 (CE)
Application Areas
Electric Vehicles
Charge Voltage
0V – 5V
Discharge Voltage
0V – 5V
Voltage Accuracy
0.02% F.S.
Current Accuracy
0.03% F.S.
Power Accuracy
0.05% F.S.
Automatic Current Ranges
50A / 100A / 200A / 300A
Current Range
0 – 300A (up to 3000A)
Current Rise Time
4ms
Switching Time
8ms
Simulation Time
20ms
Minimum Data Sampling Time
10ms
Number of Channels
16CH / 8CH
Input Voltage
400VAC ±10% (3 phase, 5 wire: A/B/C + N + PE)
Certification
CE
Portable Battery Cell Balancer
Model
JAT-JTCBR-360303PT / JAT-JTCBR-360505PT
Analog Battery Count
4~36 strings
Output Voltage
1500mV~4500mV
Output Voltage Accuracy
± (0.05% + 2) mV
Voltage Measurement Range
100mV~4800mV
Voltage Measurement Accuracy
± (0.05% + 2) mV
Charge Current Measurement Range
100mA~5000mA, supports pulse charging; automatically limits current to 3A after overheating
Output Current Accuracy
± (0.1% + 3) mA
Discharge Current Measurement Range
1mA~5000mA, supports pulse discharging; automatically limits current to 3A after overheating
Current Measurement Accuracy
± (0.1% + 3) mA
Charge Cut-off Current
50mA
Certification
CE

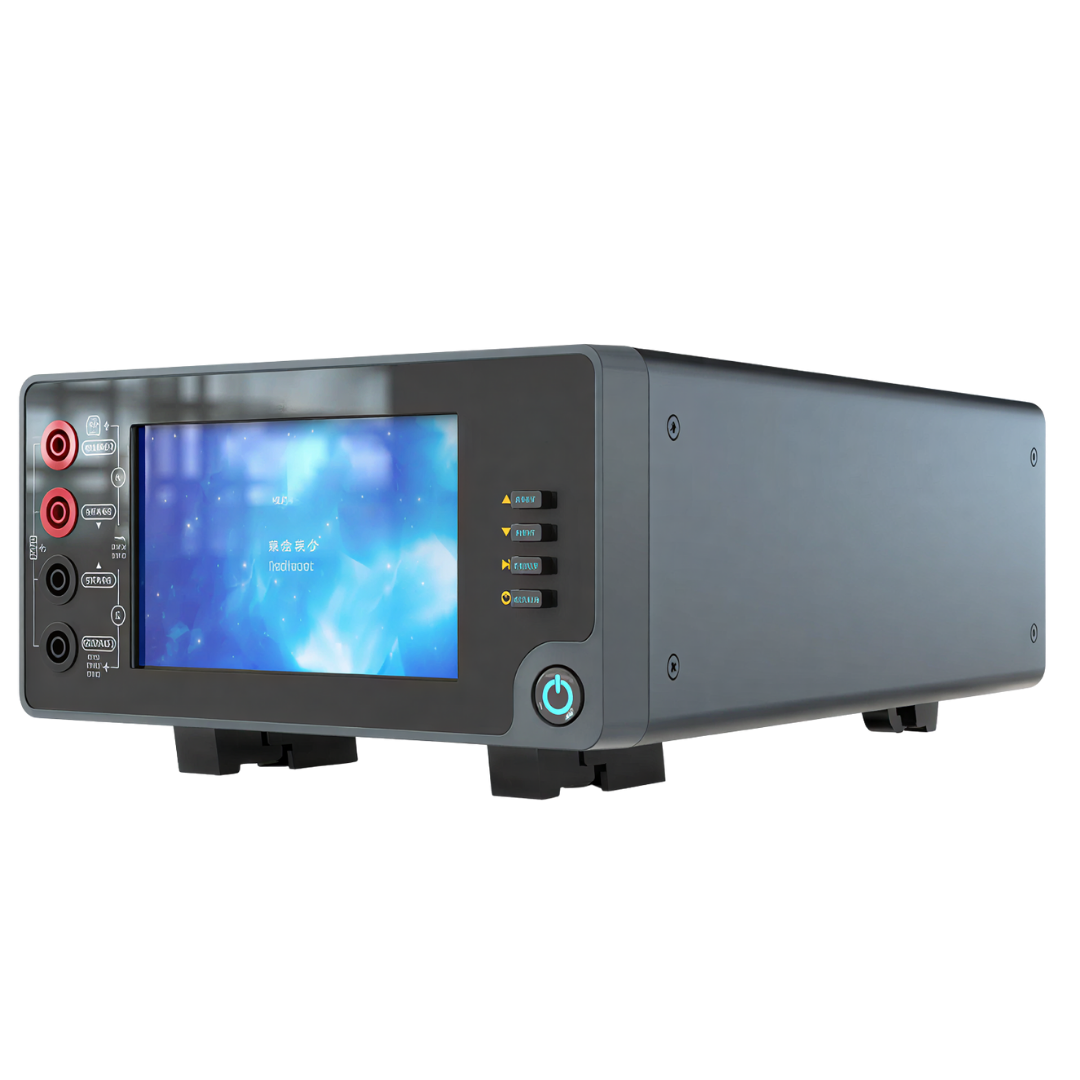

Battery Internal Resistance Tester
Model
JT-3563
Internal Resistance (IR) Range
3mΩ ~ 3000Ω
IR Accuracy
±0.3% reading ±30 digits / ±5 digits
Voltage Range
± (0.01mV ~ 300V)
Voltage Accuracy
±0.005% reading ±3 digits
Sampling Speed
17ms ~ 20ms
Data Storage Capacity
Over 30,000 test results
Dimensions / Weight
201W × 286D × 101H (mm), benchtop type, 4kg
Model
JT-3564
İç Direnç (IR) Aralığı
3mΩ ~ 3000Ω
IR Hassasiyeti
±0.3% okuma ±30 hane / ±5 hane
Gerilim Aralığı
± (0.01mV ~ 300V)
Gerilim Hassasiyeti
±0.005% okuma ±3 hane
Örnekleme Hızı
17ms ~ 20ms
Veri Depolama Kapasitesi
30.000’den fazla test sonucu
Boyut / Ağırlık
201W × 286D × 101H (mm), masa tipi 4kg
Model
JT-3565-H
Internal Resistance (IR) Range
3mΩ ~ 3000Ω
IR Accuracy
±0.3% reading ±30 digits / ±5 digits
Voltage Range
± (0.01mV ~ 2250V)
Voltage Accuracy
±0.01% reading ±3 digits / ±0.05% reading ±3 digits
Sampling Speed
17ms ~ 20ms
Data Storage Capacity
Over 30,000 test results
Dimensions / Weight
201W × 286D × 101H (mm), benchtop type, 5kg

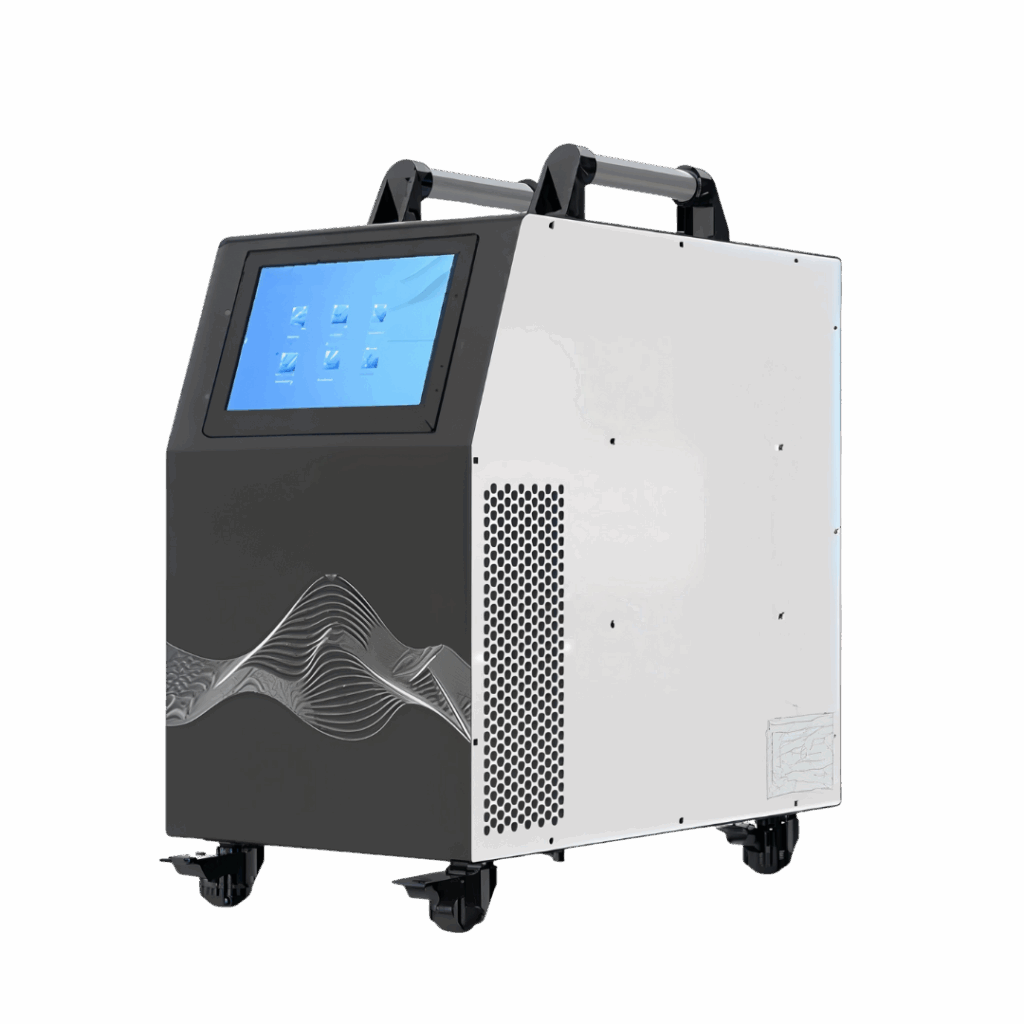

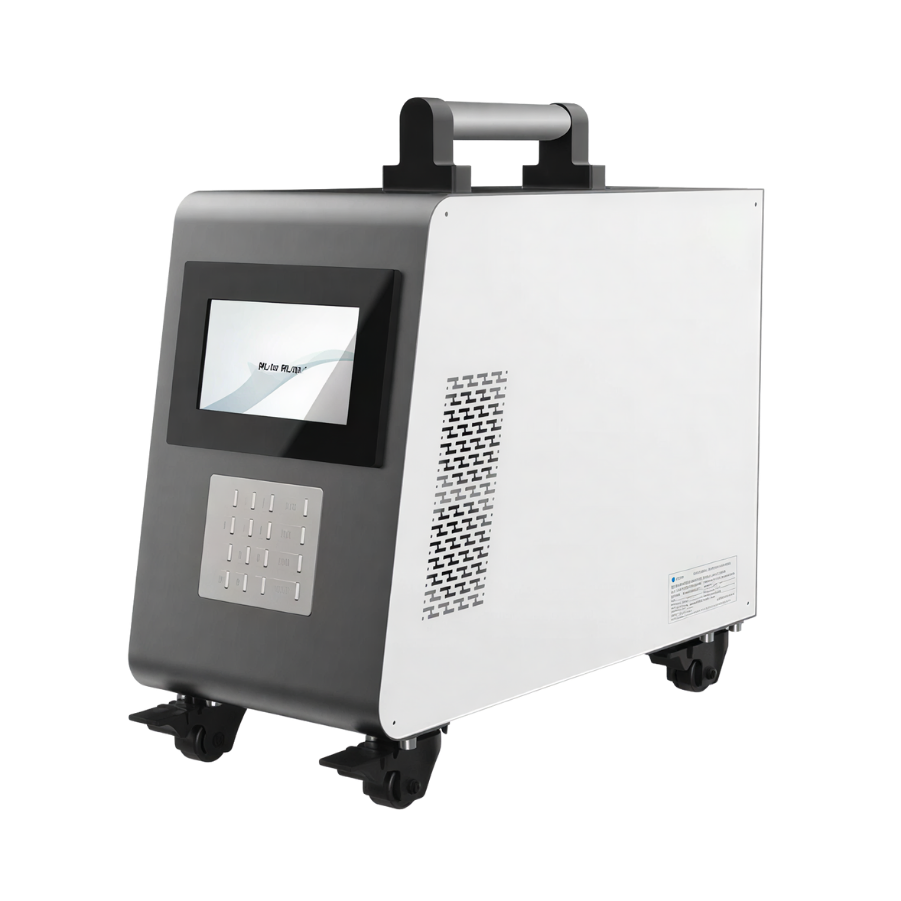

Portable Battery Module Cycle Test System
Application Area
Research / Industry / After-Sales
Model
JAT-JTFLCT-300100PT-E002
Charge Voltage
0V ~ 300V
Discharge Voltage
0V ~ 300V
Voltage Accuracy
±0.02% F.S
Current Accuracy
±0.02% F.S
Current Range
0 ~ 100A
Power Accuracy
0.1% F.S
Maximum Power
20 kW
Current Rise Time
5 ms
Switching Time
10 ms
Simulation Time
20 ms
Minimum Sampling Time
10 ms
Number of Channels
1 CH
Input Voltage
Automatic adaptation to global 3-phase grids: 3×208V~3×440V ±10%, 50/60 Hz ±5%
Certifications
CE

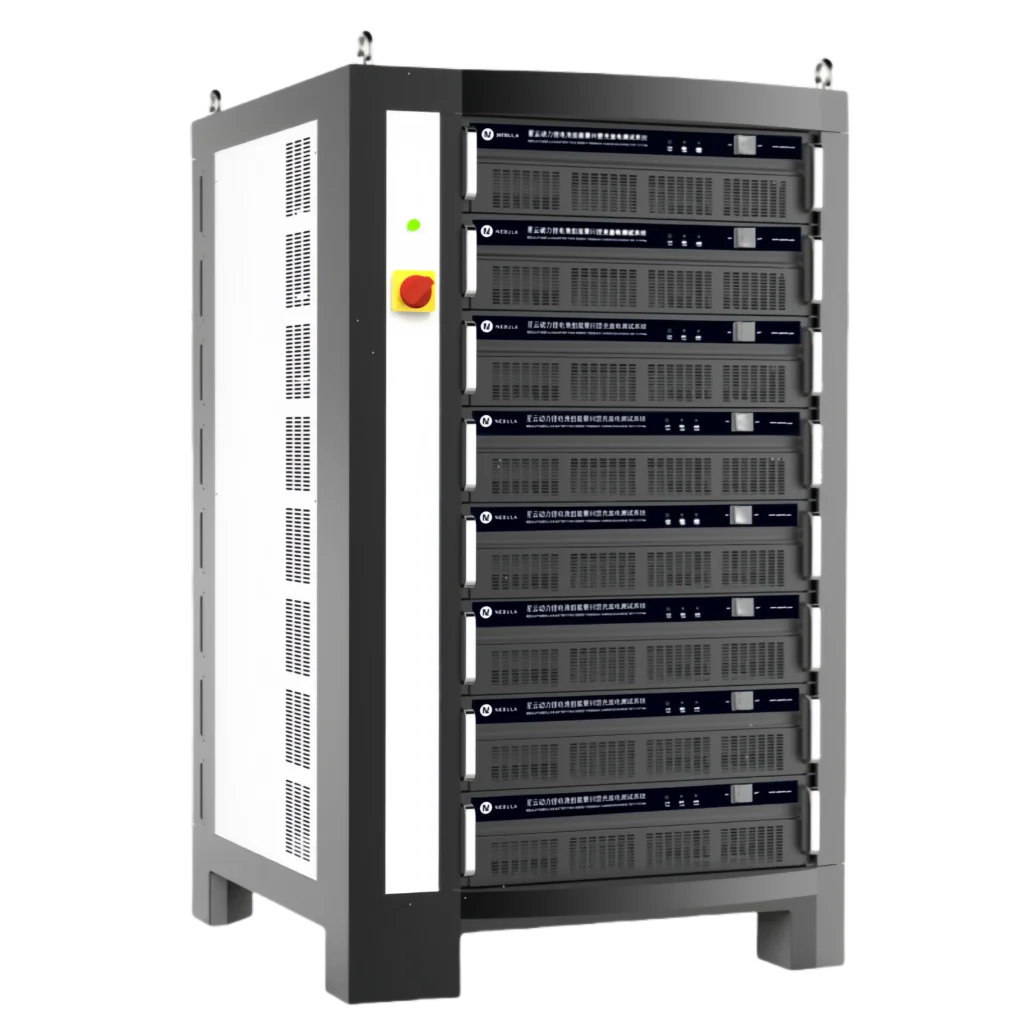

Battery Module Cycle Test System 120V 125A
Model
JAT-JTEFLCT-120125-V001
Application Area
Electric Vehicles / Energy Storage
Charge Voltage
0 ~ 120V
Discharge Voltage
0 ~ 120V
Voltage Accuracy
±0.05% F.S
Current Accuracy
±0.05% F.S
Current Range
±125A
Power Accuracy
±0.1% F.S
Maximum Power / Channel
12 kW
Current Rise Time
5 ms
Switching Time
10 ms
Simulation Time
20 ms
Minimum Sampling Time
10 ms
Number of Channels
8 CH
Input Voltage
400VAC ±10%, 3-phase, 5-wire A/B/C+N+PE
Certification
CE
Battery Module Cycle Test System 100V 60A
Model
JAT-JTEM-10060-V006-US
Application Area
Small Power Batteries
Charge Voltage
3.3V ~ 100V
Discharge Voltage
6.5V ~ 100V
Voltage Accuracy
±0.05% F.S
Current Accuracy
±0.05% F.S
Current Range
0 ~ 60A
Power Accuracy
±0.1% F.S
Maximum Power / Channel
6 kW
Current Rise Time
5 ms
Switching Time
10 ms
Simulation Time
20 ms
Minimum Sampling Time
10 ms
Number of Channels
16 CH
Input Voltage
480VAC ±10%, 3-phase 5-wire (A/B/C+N+PE)
Certification
CE

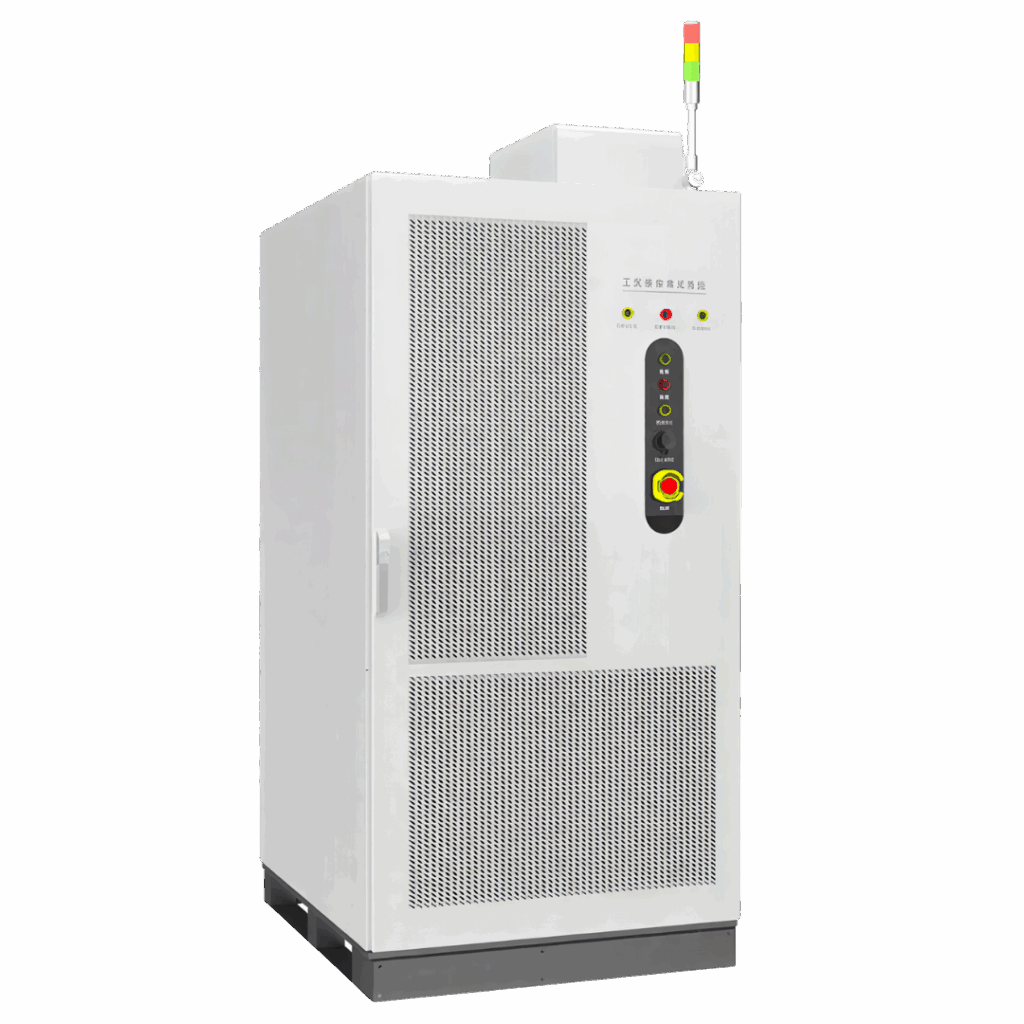

Battery Pack Cycle Test System 600kW 1650V
Application Area
Research / Industry
Model
JAT-JTH-600165030002-V008
Usage Area
Research / Industry
Charge Voltage
70V ~ 1650V
Discharge Voltage
70V
Voltage Accuracy
±0.01% F.S
Current Accuracy
±0.03% F.S
Current Range
±300A
Power Accuracy
±0.1% F.S
Maximum Power / Channel
300 kW
Current Rise Time
4 ms
Switching Time
8 ms
Simulation Time
20 ms
Minimum Sampling Time
1 ms
Number of Channels
2 CH
Input Voltage
380VAC ±10%, 3-phase 5-wire (A/B/C+N+PE)
Certification
-
Application Area
Research / Industry
Model
JAT-JTH-600100060004-E004
Usage Area
Electric Vehicles / Energy Storage
Charge Voltage
1V ~ 1000V
Discharge Voltage
35V ~ 1000V
Voltage Accuracy
±0.01% F.S
Current Accuracy
±0.03% F.S
Current Range
0 ~ 600A
Power Accuracy
±0.05% F.S
Maximum Power / Channel
600 kW
Current Rise Time
4 ms (optional: 2 ms)
Switching Time
9 ms (optional: 4 ms)
Simulation Time
20 ms (optional: 10 ms)
Minimum Sampling Time
10 ms (optional: 1 ms)
Number of Channels
4 CH
Input Voltage
400VAC ±10%, 3-phase 5-wire (A/B/C+N+PE)
Certification
CE

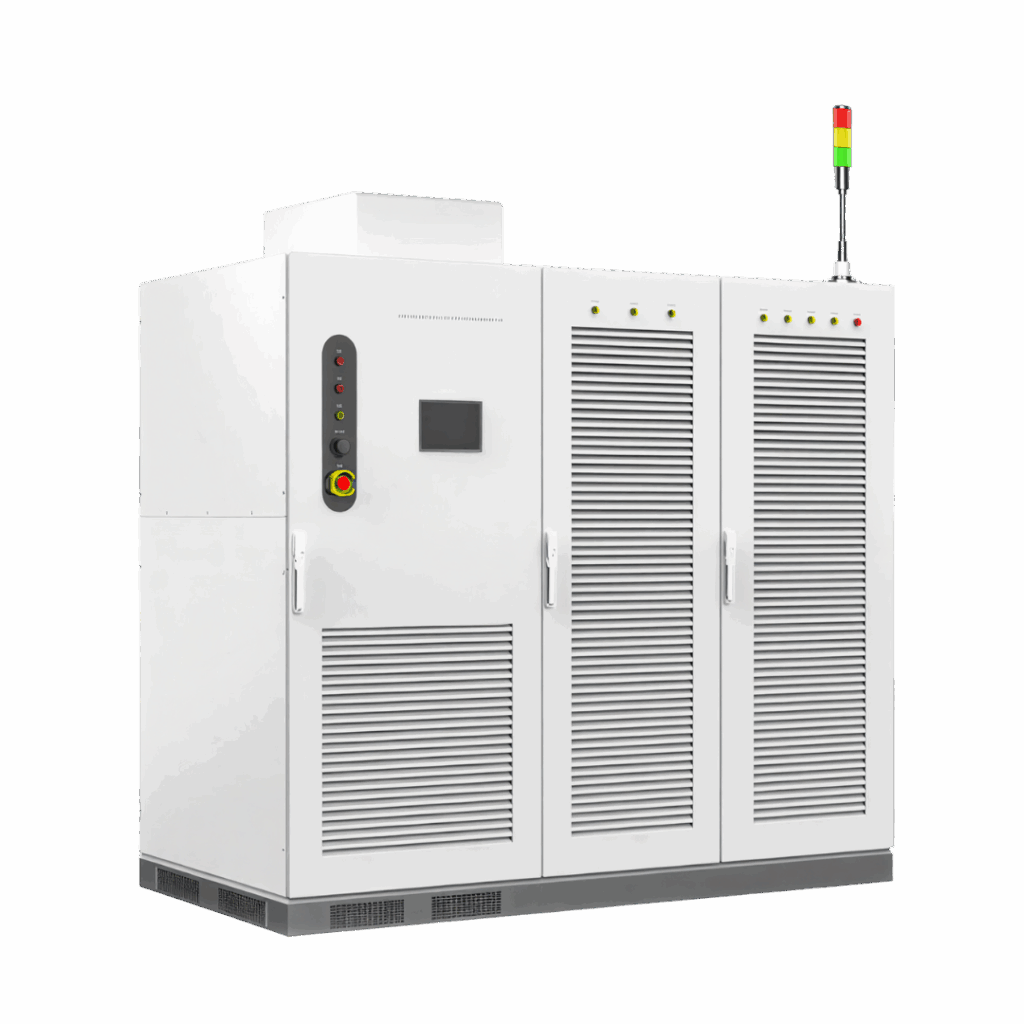

Battery Pack Cycle Test System 1000V

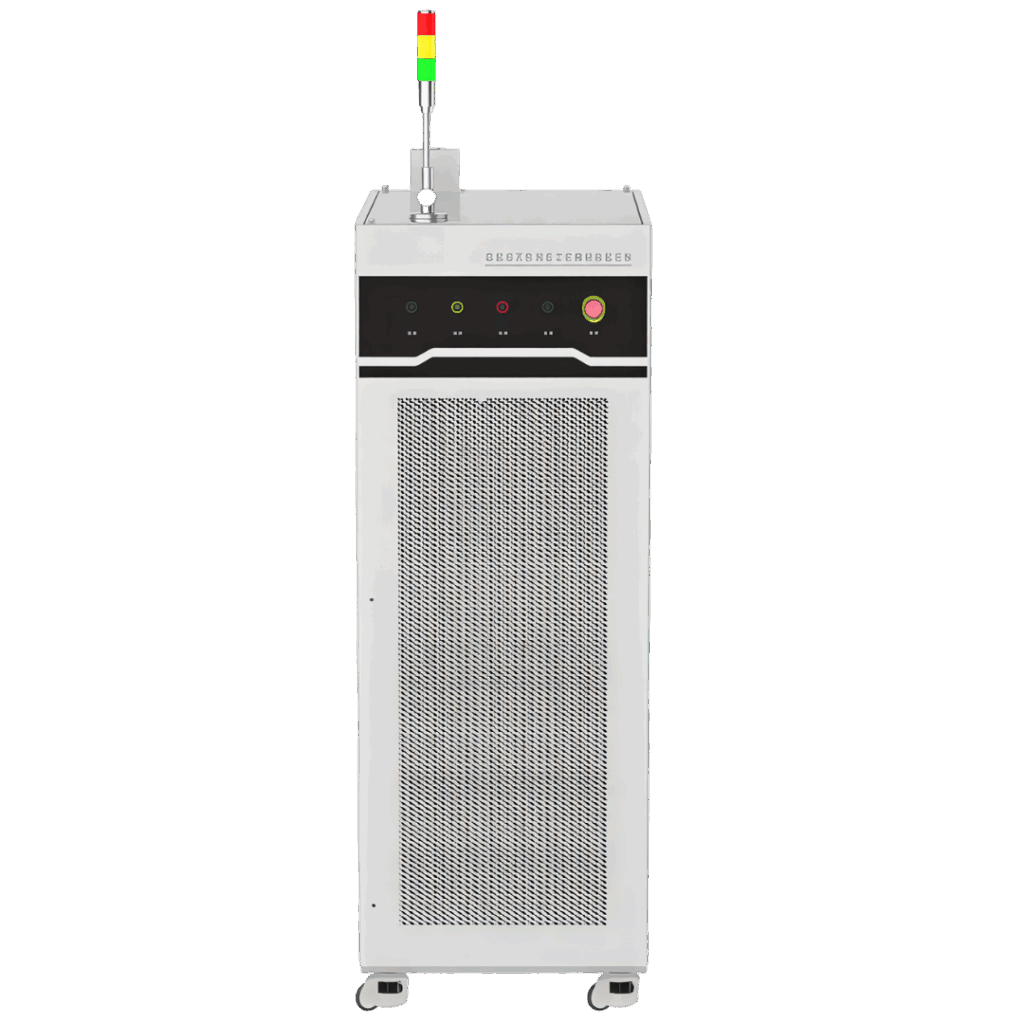

Power Battery EOL Test System
Application Area
Research / Industry
Model
JAT-JTVPEOL-1T1-V003
Usage Area
Electric Vehicles
Equipotential Connection
1 set
AC Impedance
1 set
Insulation / Short Circuit Test
12 sets
Humidity / Temperature Test
1 set
LV Test
5 sets
BMS LV Supply
9 sets
Pull-up Resistor
(1K / 220Ω / 680Ω): 5 sets
Protocol Interface
CAN, NET, RS232, USB
PWM Square Wave Output
2 sets
Voltage: -12V ~ +12V
Frequency: 10Hz ~ 50kHz
Frequency Accuracy: ±3% R.D.
Duty Cycle: 5% ~ 95%
Communication Test
1 / 2 / 4 / 8 sets
Spare Relay
2 sets dry contact, 2 sets 10k resistor
Certification
CE
Application Area
Research / Industry
Model
JAT-JTVPEOL-1T2-V003
Usage Area
Electric Vehicles
Equipotential Connection
2 sets
AC Impedance
4 sets
Insulation / Short Circuit Test
24 sets
Humidity / Temperature Test
1 set
LV Test
10 sets
BMS LV Supply
18 sets
Pull-up Resistor
(1K / 220Ω / 680Ω): 10 sets
Protocol Interface
CAN, NET, RS232, USB
PWM Square Wave Output
4 sets
Voltage: -12V ~ +12V
Frequency: 10Hz ~ 50kHz
Frequency Accuracy: ±3% R.D.
Duty Cycle: 5% ~ 95%
Communication Test
2 / 4 / 8 / 16 sets
Spare Relay
4 sets dry contact, 4 sets 10k resistor
Certification
CE

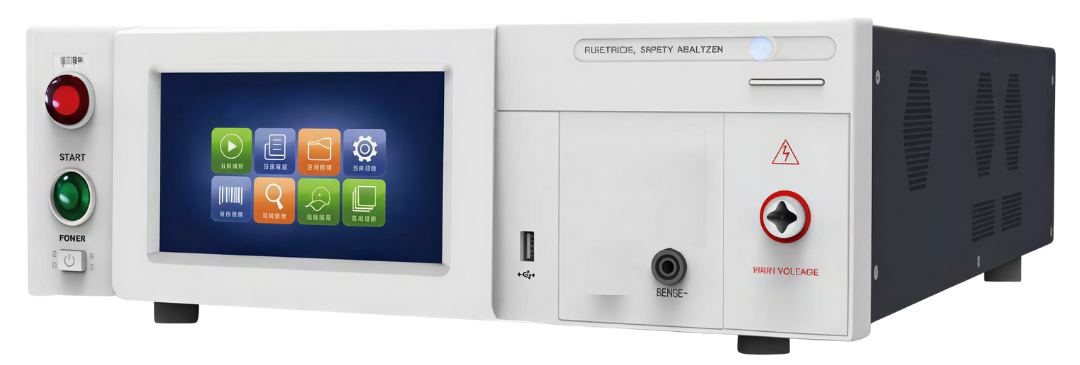

Electrical Safety Analyzer
Application Area
Research / Maintenance / Verification / Industry
Model
JT-9301
ACW
5kVac / 100mA
DCW
6kVdc / 20mA
Insulation Resistance
6kVdc / 50GΩ
AC Resistance
-
DCGB
40Adc / 600mΩ (Optional)
Parallel Function
-
Multi-Channel Switching
8 CH HV scanning card
Operation & Interface
Android, 7-inch display
Standard: RS232 / RS485
Optional: USB, LAN, WiFi
Dimensions
426W × 132H × 420D (mm)
Application Area
Research / Maintenance / Verification / Industry
Model
JT-9303
ACW
5kVac / 100mA
DCW
6kVdc / 20mA
Insulation Resistance
6kVdc / 50GΩ
AC Resistance
64Aac / 600mΩ
DCGB
40Adc / 600mΩ (Optional)
Parallel Function
Grounding and insulation withstand test
Multi-Channel Switching
5 CH HV scanning card; 3 CH grounding card
Operation & Interface
Android, 7-inch display
Standard: RS232 / RS485
Optional: USB, LAN, WiFi
Dimensions
426W × 132H × 520D (mm)

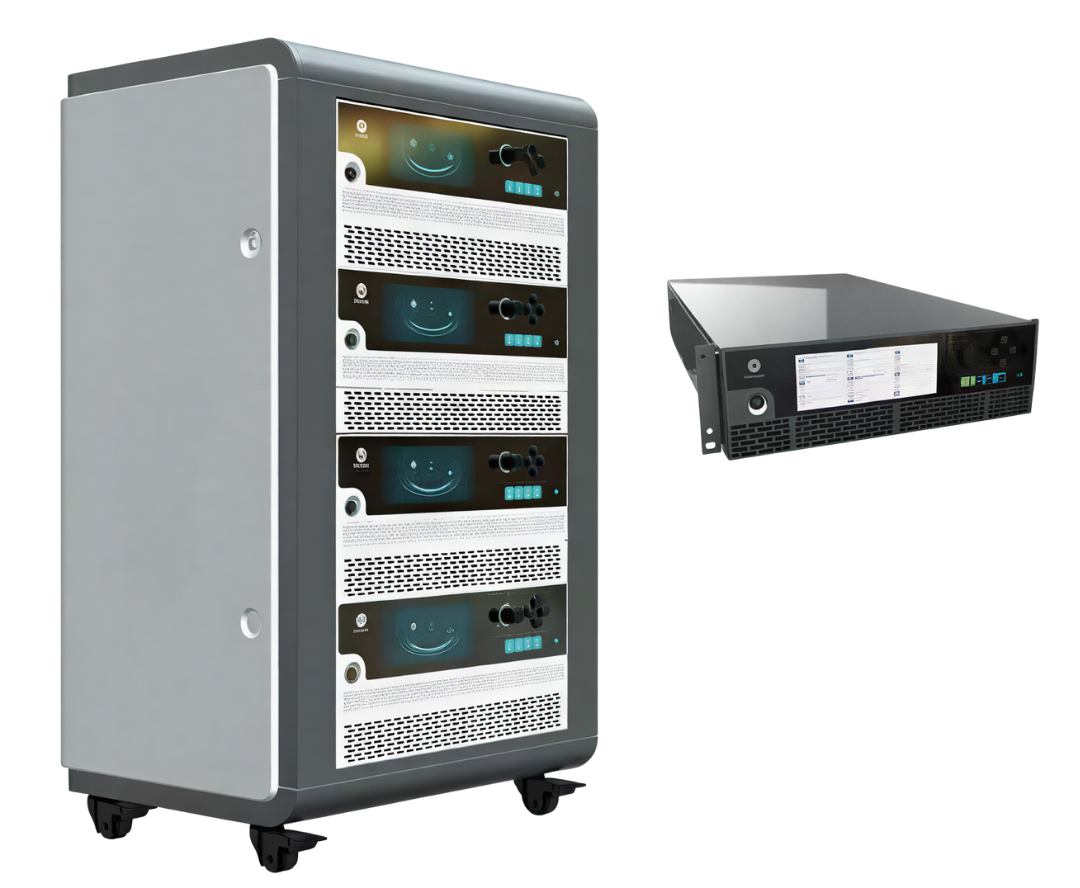

Application Area
Research / Industry
Model
JTPD-18200030-V001
Source Mode
Voltage:
Range: 0 ~ 2000V
Accuracy: 0.02%R.D. + 0.02%F.S. (25°C ±5°C)
Resolution: 100mV
Current:
Range: -30A ~ +30A
Accuracy: 0.05%R.D. + 0.05%F.S.
Resolution: 1mA
Power:
Range: -18kW ~ +18kW
Accuracy: 0.5%R.D. + 0.5%F.S.
Resolution: 1W
Load Mode
Voltage:
Range: 10 ~ 2000V
Accuracy: 0.02%R.D. + 0.02%F.S. (25°C ±5°C)
Resolution: 100mV
Current:
Range: -30A ~ +30A
Accuracy: 0.05%R.D. + 0.05%F.S.
Resolution: 1mA
Power:
Range: -18kW ~ +18kW
Accuracy: 0.5%R.D. + 0.5%F.S.
Resolution: 1W
Temperature Coefficient
Voltage ≤50PPM/°C; Current ≤200PPM/°C
Voltage Ripple
Peak-to-Peak ≤2000mVpp; RMS ≤600mVpp
Sense Compensation
≤20V
AC Input
Voltage: 342V ~ 528V (3-phase, 4-wire)
Frequency: 47Hz ~ 63Hz
Maximum Efficiency
92%
Power Factor
99%
Interface
CAN, RS-232C, USB, Ethernet, Power Input, Test Interface, RS-485
